High speed center seal (back seal) pouch making machine is used for making central sealing pouches. Production capacity depends on film material and its thickness. Model No. HSZFD-300, HSZFD-400,HSZFD-500,HSZFD-600,HSZFD-700, special specifications can be customized. Optional function as round hole, Euro Slot, Die cut handle hole and automatic Back Seal Pouch stacking.
Bag (Pouch)Making Machine For Central-bottom Sealing Pouch
Central Seal (Back Seal) Pouch Types and specifications
Features:
l The whole machine is controlled by a touch screen PLC control system, with advanced structure, coordinated appearance, high manufacturing precision, and stable component performance, reaching the current domestic advanced level.
l The control system adopts touch screen PLC control to complete the tension of the placement of the entire machine material,adjust the edge position, the speed of the place the material, the tension of reserve material, tension-auxiliary traction to fix and replenish length, main traction to fix, detect and replenish length, control the sealing mold temperature and control the speed of cutting. In addition, auxiliary functions such as counting and batch counting can be automatically controlled.
l Main traction fixed-length and auxiliary traction fixed-length systems adopt 2 sets of servo motors and servo drives +2set servo motors and servo drives for double cutter, which are controlled by PLC.
l The double unwinding device is equipped with a magnetic powder automatic brake （It has the advantages of fast response speed, simple structure, no pollution, no noise, no shock vibration and so on）, which is controlled by a tension controller.
l The main motor adopts 4kw servo motor, which controlled by PLC.
l The transverse position can be automatically detected and accurately located,using the DATASENSOR photoelectric sensor(Europe’s third largest brand of photoelectric sensors), processed by PLC, by the execution system to complete the required functionality reliably.
l The heating body and the sealing mold are made of aluminum alloy and magnesium alloy material, which has high strength, small deformation and high sealing quality.
l The electrical components supporting the product adopt international and domestic famous brand products.
l Forming system is by two-times forming, more stable and faster speed.

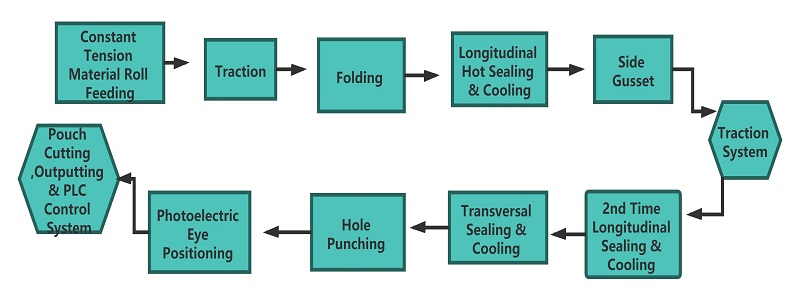

Central Seal Pouch Production Flow Chart
Back Seal Bag Making Machine Main Parameter
Model No.
HSZFD-300
HSZFD-400
HSZFD-500
Material
Various Hot Sealing Laminated Film ,single layer thickness 0.045-0.15mm
Material
Size
Roll Width :600mm
Roll Width :800mm
Roll Width :1000mm
Max outer Dia or the roll: 800mm
Bag Making Capacity
250 cuts/min(Depending on the material and bag size)
Max film speed:60m/min
250 cuts/min(Depending on the material and bag size);
Max film speed:60m/min
250 cuts/min(Depending on the material and bag size);
Max film speed:60m/min
Bag
Size
Width
75mm—300mm
75-400mm
75-500mm
Length
440mm（longitudinal sealing 2 times）
Sealing
Width
Longtudinal sealing width: 10mm
Cutter of cross hot sealing width: 10/20/30/40mm.
Control System
PLC Control
Material
Traction
Mechanism
Servo Motor Traction System
Material Discharge
Discharge shaft, tripod
Braking
Device
Constance Tension Encode Magnetic Powder Control System
Power
380V +/- 10%, 50HZ, 3PH
Air Source
0.6Mpa
Cooling Water
Approx 15L/min
Temperature control
12 ways
Temperature
0～300°C
Power
380V+-10%,50HZ
Approx 15kw
?
?
Compressed air pressure
0.6Mpa
Overall Dimension
10500 *1400*1600
11000*1600*1800mm
Total weight
Approx 3000kg
?
?
Common FAQ Queations
1.This three side seal stand up zipper bag making machine is suitable for which materials?
Co-Extrusion film, Multi layer lamination film of polyester, BOPP and CPP.
2.Except 3 side seal bag, 3 side seal zipper bag, stand up zipper bag, can it make other type bags?
Yes , it can also make quad seal bag .
3.Which advantage does your machine have ?
1)Unique design for safety operation , protect the worker’s hand, no cutting risk
2)PLC by Japan Panasonic. Other servo motor , air cylinder are all famous brand.
3)Warranty : 2 years
4.How many years have you make 3 side seal bag machine?
16 years+
5.How we know if your company is reliable and credit?
Our company started from 2008, exported 30+ countries, Credit is AAA grade .Our aim is to help each customer to reach success and guarantee good running.
6.Do you supply site training ?
Yes, after the machine arrive there, we can dispatch engineer for guiding the installing and site training.
7.During using period, if any problem, how do you solve?
We organize on-line discussion, video guiding , solve customer’s question in first time.
8.Can we know every day’s production data?
Yes, you choose the additional function for remote control. We will add this function for you.
Your mob connect with machine, you can know every day’s production data.
9.If any problem for the program, can you solve immediately?
Yes, if you choose remote control function while order, we will add this function. We can know if the program is problem there.
10.After warranty time, if problem, will you help?
Our company has been more than 17 years,we supply lifelong compensable service.
11.We need to buy some easy-broken spare parts while order the machine?
Usually we give some easy-borken parts and installing tools for free. If you want to keep some as spare , we can give you additional spare parts list for your choosing .
How Do You Do Technical Support?
Haosen is Committed to do excellent technical support!
1.We supplies comprehensive product manuals that include all the information required :
1)Machine assembling
2)Power Connection
3)Main Operate
4)Troubleshoot
5)Circuit Diagram
6)Spare Parts List
The manuals are available in conventional print form as well as digital format.
