Jumbo bags can be used for packaging powered, granulated or bulk products. Jumbo bags usually are made of PP granules.And the bags have some advantages over traditional bags, such as reducing package waste,increasing storage and transportation efficiency,and improving handling and efficiency.

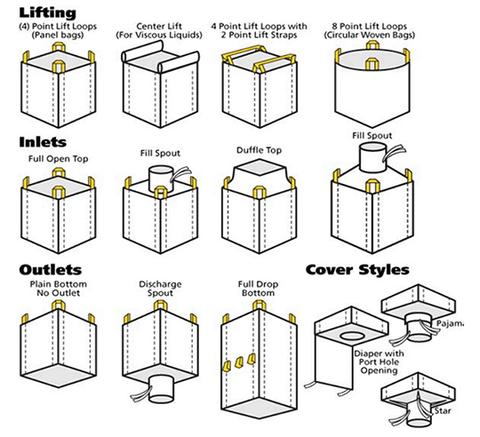

According to the raw materials and processes, there are a few differences
Max speed
368m/min
Water Tank
Structure
Electric lift control
Material
Sus304
Stainless steel cooling water tank
Lifting Film And Thread Cutting Device
Structure
Arch type gantry structure
Lifting film speed reducer
Gr series
Worm gear reducer
Lifting film motor
Yp2-4kw ac energy saving motor
Senlan converter
Pulling motor
Yp2-7.5kw ac energy saving motor
Jiangsu guomao group
Pulling reducer
Gr series
Worm gear reducer
Max speed
50m/min
Hot Stretching Oven
Structure
Double layer hot air circulation type
The effective length of stretching
6000mm
Effective width
1550mm
Heating power
30kw×2
Intelligent temperature control meter
Fan power
5.5kw×2
Four Roller Stretching Device
Structure
Four roller stretching
Protective cover, emergency stop rope
Roller dia
Φ420mm
Hard chromium plating on the surface 0.05mm
Stretching frequency converter
22kw
Senlan converter
Stretching motor power
Yp2-22kw ac energy saving motor
Jiangsu guomao group
Stretching reducer
Gr99series
Special hardened reducer
Form of transmission
Flat belt drive
Smooth transmission without noise
Max speed
388m/min
Frequency control
Four Roller Forming Device
Structure
Protective cover, emergency stop rope
Roller dia
Φ420mm
Hard chromium plating on the surface 0.05mm
Number of cooling roller
2sets
Built in double layer,2 hot rollers/2cooling water cycle
Forming frequency converter
11kw
Senlan converter
Forming motor power
Yp2-11kw ac motor
Jiangsu guomao group
Forming reducer
Gr89series
Special hardened reducer
Form of transmission
Flat belt drive
Smooth transmission without noise
Max speed
388m/min
Frequency control
Ac Winding Machine
Structure
Ac constant tension winding machine
Silk package forming surface smooth, smooth surface, no wire
Bobbin spec
Φ38×230mm
Total qty
240spindle
Each spindle power
0.15kw/spindle
Electric Control System
Power distribution cabinet
1pcs
Plc centralized control system
The whole machine has the function of synchronous rising and falling speed linkage, emergency stop, over pressure and over temperature protection.
Control cabinet
1pcs
Operating cabinet
1pcs
Auxiliary Device
Vacuum feeding machine
2.2kw
Vacuum type automatic feeding machine
Moisture absorption fan
5.5kw
Air negative pressure moisture absorption
Side wire crushing device
1.5kw+2.2kw
Edge wire online crush recovery
Waste collection system
11kw
Online waste absorption, including pipes, waste box
Electric Energy
Total installed capacity
480kw
This column parameter contains 240 spindle winding machine
Others
Totalweight(about)
40tons
Install size
43×4×3.5m

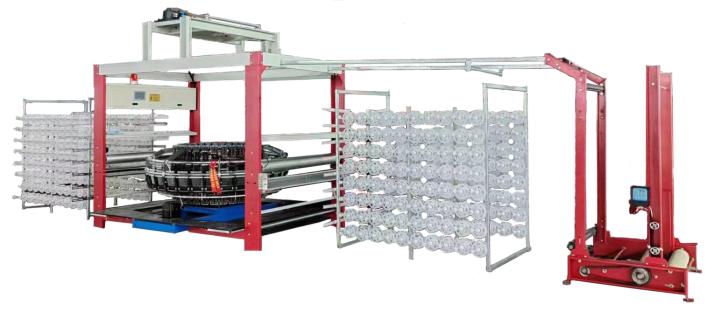

2) 6 Shuttle Circular Loom
Name
Specification
Unit
High speed levitating Six shuttles circular loom for ton bag
HS-YK-FCL-6.0-1200T
Machine
Main motor power
4
kw
Weight
About 2600
kg
Dimension
11000(L)*2800(W)*3500(H) (will adjust depend on no. of tape.)
mm
Working Range
Max.weaving folded width
1200
mm
Min.weaving folded width
800
mm
Max.weaving speed
100-130
r/min
No. Of tape
1344
pcs
Bobbin
Bobbin inner diameter
38（customized）
mm
Weft bobbin length
230/270（customized）
mm
Max. Weft bobbin diameter
105~110
mm
Warp bobbin length
230/270（customized）
mm
Max.warp bobbin diameter
140~150
mm
Oscillating Bar
Material
Reinforced 66 nylon66
Base material
High-duty aluminium
Bearing craft
6201 double sealed
Precision
Detection standard
National standard
Some changedSpecification willnotbeprior notice because of continuousdesign improvement
Configuration List
No.
Configuration
Specification
1
Levitating complete shuttle
High-duty die-cast aluminium
Weft quick-change device
2
Warp tension balancer
3
Empty warp auto-stopping device
4
Intelligent control system
5
Main motor
Permanent magnet dc motor
6
Servo driver/converter
System supporting
7
Mainshaft bearing
Bearing6312
8
Levitating track
6 shuttles chrome plated steel rail
9
Wearproof heald belt
42 pairs
10
Wearproof steel heddle
1344pcs
11
Winder motor
25kg torque motor
12
Protective coating
Super paint
13
Warp feeding device
Synchronous servo motor
14
Warp creels
15cm diameter bobbin tray type
15
Dustproof rolling wheel on track
16
Intelligent lift
17
Solderless outer guide iron rod on shuttle
3)8 Shuttle Circular Loom
Technical Parameters
Name
Specification
Uni
High speed levitating Eight shuttles circular loom for ton bag
HS-YK-FCL-8.0-2200
Machine
Main motor power
5.5
kw
Weight
About 6300
kg
Dimension
15500(l)*3710(w)*4950(h)(will adjust depend on no. Of tape.)
mm
Working Range
Max.weaving folded width
2200
mm
Min.weaving folded width
1800
mm
Max.weaving speed
80-100
r/min
No. Of tape
2048(max. 2432)
pcs
Bobbin
Bobbin inner diameter
38（customized）
mm
Weft bobbin length
230/270（customized）
mm
Max. Weft bobbin diameter
105~110
mm
Warp bobbin length
230/270（customized）
mm
Max.warp bobbin diameter
140~150
mm
Oscillating Bar
Material
Reinforced 66 nylon66
Base material
High-duty aluminium
Bearing craft
6201 double sealed
Precision
Detection standard
National standard
Some changedSpecification willnotbeprior notice because of continuousdesign improvement
Configurartion List
No.
Configuration
Specification
1
Levitating complete shuttle
High-duty die-cast aluminium
Weft quick-change device
2
Warp tension balancer
3
Empty warp auto-stopping device
4
Intelligent control system
5
Main motor
Permanent magnet dc motor
6
Servo driver/converter
System supporting
7
Mainshaft bearing
Bearing6312
8
Levitating track
8 shuttles chrome plated steel rail
9
Wearproof heald belt
64 pairs
10
Wearproof steel heddle
2048(max. 2432) pcs
11
Winder motor
25kg torque motor
12
Protective coating
Super paint
13
Warp feeding device
Synchronous servo motor
14
Warp creels
15cm diameter bobbin tray type
15
Dustproof rolling wheel on track
16
Intelligent lift
17
Solderless outer guide iron rod on shuttle

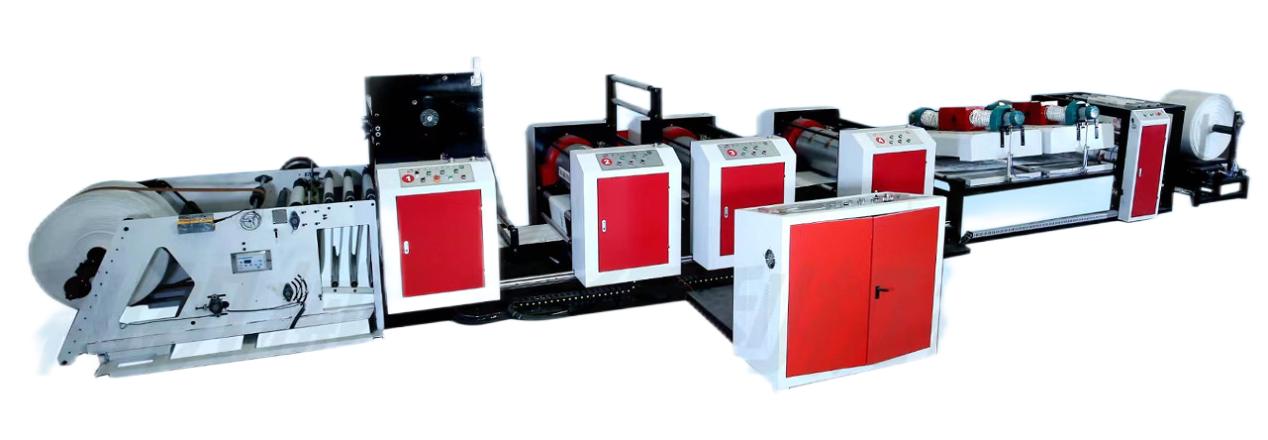

4)4 Colors Roll To Roll Printing Machine
Performance Profile
The fuselage adopts steel plate structure, which is more stable
The motor transmission adopts synchronous belt and synchronous wheel with low nose
Ink transfer clutch and ink place clutch are pneumatic and easy to operate
Use pneumatic locking of the unit after moving
Stop without waste bags
All-machine remote control operation, convenient and flexible
The back of the color printing bag can be printed with color label tracking
Ink cartridges can be lifted and lifted
Automatic alarm, close the volume with pneumatic lower roll
Operators need only one person
Dual traction function is used for the posterior traction
Brush the vacuum cleaner
Discut alarm shutdown
Main Components Of The Equipment
Rolling unit
During the operation, only push the cylinder material to the feeding position of the feeding arm, and then use the manual control pneumatic valve or electric button to automatically roll up. After the rolling, the distribution deviation correction is printed, and the subsequent cylinder change needs to be shut down.
Printing unit
1) Each color printing unit is equipped with a servo motor for independent transmission, which can be printed or single-side printing at the same time through different cloth wear methods. (For example, combined 4 color repress: up to 4 colors; 4+0,3+1,2+2).
2) Printing adopts the combination of mesh roller, chrome roller and rubber roller for ink transmission. There is a separate motor to ensure that the ink is uniform and no ink is dumped. This machine is equipped with automatic ink tracking function.
Material receiving unit
1)The winding motor adopts the frequency converter, which runs synchronously with the main engine, and can increase or slow speed synchronously.
2)The roll collection is equipped with an automatic deviation correction system to ensure the neat roll cloth.
3)Use cylinder push cylinder material for lower roll unloading. Manually cut cloth, stop cloth roll function.
Technical Parameters
Max Feeding Width
2000mm
Max Printing Width
1900mm
Printing Plate Perimeter
1271 mm
(Only full versions with a bag length of 1200mm can be printed, full versions with other lengths cannot be printed; if the bag length is within 1200mm, a 100mm blank space must be reserved for printing. The bag length is between 1200mm and 1400mm, and the length of the printing surface cannot exceed 1000mm)
Winder &Unwinder Dia
≤2300mm
Plate Thickness
4－5mm
Printing Speed
≤120m/min
Registering Tolerance
±0.5mm
Single Group
Printing Unit Power
Servo motor drive separately (1.5w)
Traction Before And After Printing
Front 10KW，back 10KW
Servo motor drive separately
Drying
Each color with one double wind oven box
Registering
Vertical electric registering
Total Power
27KW
Drying Box Power
6KW
Machine Size（L W H）
14m*3.5m*2.5m
Printing Color
4+0,3+1,2+2
Printing Machine Frame
Steel Plate
Configuration Table Of Main Components
Touch Screen (Hinterface)
WeunTong (Taiwan)
Motion Controller
Shenzhen positive movement
Servo Motor, Servo Driver
Delta (Taiwan)
Frequency Transformer
Huichuan (Shenzhen)
Low Voltage Electrical
Chint
Color-ScalePhotoelectric Sensor
Panasonic (Japan)
Proximity Switch
Okamoto (Japan)
Roll Out Roll And Close Roll, Air Rise Axis
not have
Guiding System
Double-servo photoelectric deviation correction
Bearing
Renben MZD
The Pneumatic Parts
Yadker, Aix
Free Spare Parts List
NO.
NAME
QTY
1.
300 Swivel wrench
1set
2.
200 Tongs
1set
3.
Inside the hexagonal wrench
1set
4.
12-14 with a wrench
1set
5.
13-16 with a wrench
1set
6.
17-19 with a wrench
1set
7.
Phillips screwdriver
1set
8.
One-word screwdriver
1set
9.
30AS
1set
10.
φ12inside hexagon
1set
11.
Color page
1set
12.
Auxiliary relay
3set
13.
Proximity switch
1set
14.
Solenoid valve4V210
1set
15.
Adjust valve 802
10set
16.
Cylinders, 50-25
1set

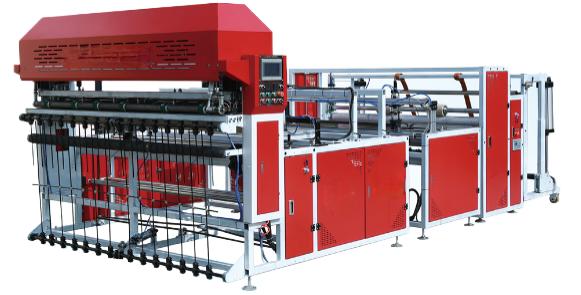

5)FIBC Bag Cutting Machine
1. With pneumatic upper cloth function, the maximum diameterof cloth coil 1200mm, the maximum volume weight 1000Kg;
2. With automatic deviation correction function, the deviationcorrection distance is:300mm;
3. It has the function of rubbing cloth opening;
4. With open round, open angle function.Size Range: 250-500mm;
5. With four corner point to hit the function (hit the size of 600-1200mm);
6. With acupuncture point function, support sub-point point 4 ;
7. With ultrasonic folding function.
Technical Parameters
Model
HS-2200A
Base Fabric Width
2200mm
Cut The Length
100-1500mm
Cropping Accuracy
±2mm
Production Capacity
12-18 (1000mm)
Temperature Control
0-400
Overall Power
10kw
Cut CrossMouth
300-500mm
Cut Round Mouth
250-500mm
Air Compression
6kg/cm²
Machine Size
5500*2900*1500
Voltage / Frequency
380v/50HZ

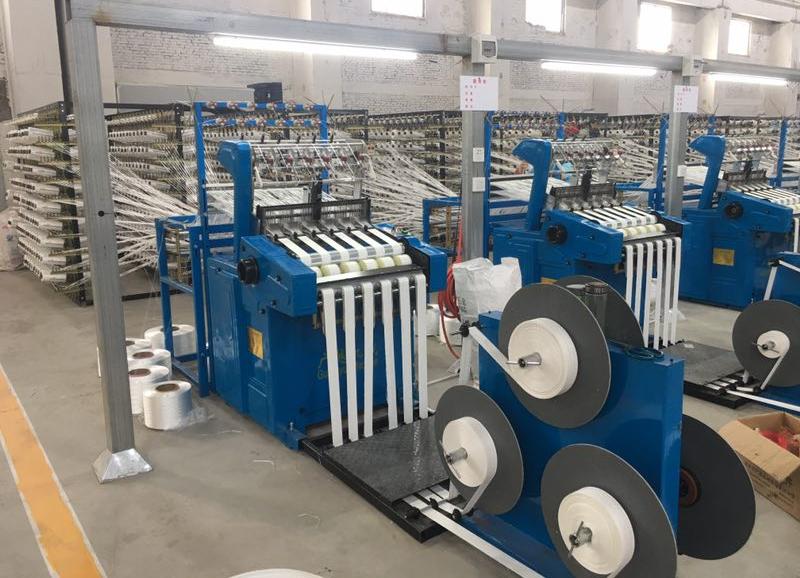

6)High Speed Woven Belt Loom
Technical Parameters
The parameter name
Unit
Parameter values
Weaving strip number
pcs
4
Weave width
mm
≤90
Weaving speed
m/h
130-180
The heavy range
g/m
≤50
Number of warp threads
pcs
720
Warp thread name and specification
Denier
Polypropylene prosthesis3300±100
Weft thread name specification
Denier
Polypropylene filament wire 800-1000
Edge locking thread name specification
Denier
Polypropylene filament wire 600-800
Wire feeding method
Weft wire feed
Warp wire feed
Power of main motor
kw
1.5
Recycled torque motor
N/m
1.5
Form size of the whole machine
mm
8800*1800*1900
The weight of the machine
kg
About 880
Configuration Instruction
Component Name
Spec
Quantity
Brand And Origin
Main Motor
50Hz, 380V,1.5kw
1 unit
Anhui Wan Nan Electric Motor
Rolling Motor
1. 5N. m
1 unit
Changzhou Liangyu Motor
Main Bearing
7 pcs
Japan NSK
Auxiliary Bearing
1 set
Shanghai human nature
Buttons, Switches
1 set
Schneider Electric
Count Probe
1 set
Omron Electric
Counter
1 set
Wenzhou Dahua
Control Circuit Board
1 set
self-control
Contactors, Relays
1 set
Zhengtai Electric
Transformer
BK-150
1 pcs
Changzhou Huatong

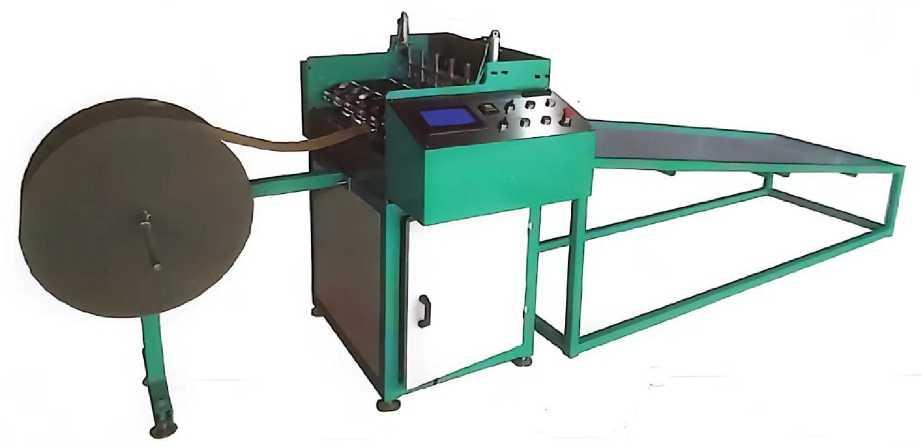

7)High Speed Woven BeltCutting Machine
Technical Parameters
1
Belt cutting width
10-300mm
2
Number of belt cutting
1-6pcs
3
Length of belt cutting
0.03-200m
4
Belt cutting/dotting accuracy
±1mm
5
Speed of belt cutting
30-60pcs/min（Length within 1500mm）
6
Temperature control
0-400℃
7
Power
2.2kw
8
Size（length x width x height）
5600×1000×1500mm
9
Machine weight
280kg

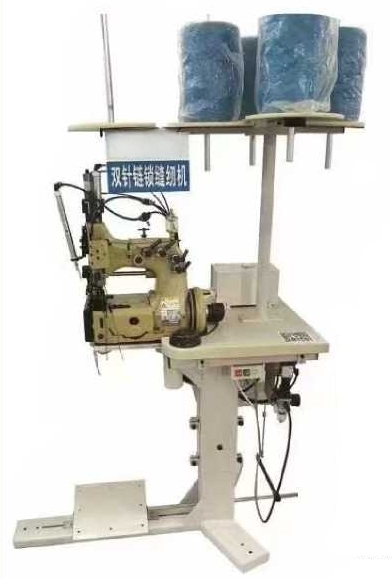

8)Twin Needle Sewing Machine
The HS-807000D4 sewing machine is specially designed for sewing tonne bags and container bags. The sewing effect is beautiful and generous, and the presser foot lifting height can reach 18mm.The needle of the machine adopts the special air pipe to cool the needle air. The presser foot is lifted and lowered by a cylinder. The machine is equipped with a hot cutting device, which can effectively cut the braid and prevent the chain stitch from loosening.The HS-807000D4 is perfectly suited for sewing applications that require the addition of two bottom tampons.
Technical Parameter
Maximum speed
Max.1,400 SPM
Stitch range
6.8-12mm(10mm standard)
Stitch type
401SSa-2
Maximum seam thickness
Up to 18mm (45/64")
Double row wire distance
18(7.2mm)
Needle type
9848GS-300/120

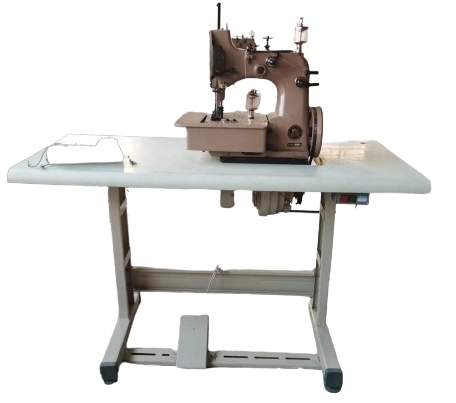

9)Edge Locking Machine
Detailed Product Desprication
1. 1 needle 2 threads
2. Suitable for PP woven bag / jute bag overlock
3. Max. speed 1400rpm
4. Sewing capacity and long service life
Technical Parameters
Place of Origin
Hebei, China (Mainland)
Brand Name
SHENPENG
Model Number
GN20-2C
Type
Industrial Sewing Machine
Stitch Formation
Overlock Stitch
Mechanical Configuration
Flat-Bed
Max. Sewing Speed
1400s/min
Max. Sewing Thickness
14mm
Stitch Length
3-16mm
Power
370W
Overall Dimensions
500mm*500mm*325mm
Weight
35KG
Feed Mechanism
Manual
Condition
New
Product Type
Overlock sewing machine
10)Bobbin
No.
Material
Spec
Weight(kg)
1
20
38x230mm
0.2
11)Bailing Machine
Technical Parameters
Maximum compression
70
Motor power(kw)
18
Cylinder diameter(mm)
140*2
Cylinder stroke(mm)
1200
Oil pump model
532 Gear Pump
Inside dimensions (w.d.h)(mm)
1440*760*9000
Packing weight(kg)
About 280
Outline dimension(w.d.h)(mm)
1540*830*1700
How Do You Do Technical Parameters?
Haosen is Committed to do excellent technical support!
1.We supplies comprehensive product manuals that include all the information required :
1)Machine assembling
2)Power Connection
3)Main Operate
4)Troubleshoot
5)Circuit Diagram
6)Spare Parts List
The manuals are available in conventional print form as well as digital format.
2.Factory-based training or customer’s site training can be organized, giving your opertors about safe operation, maintenance, changeover procedures etc.
3.On line guiding can be organized at any time if there is any trouble during the using.
Why Choose Us?
●17 years focus on pouch making machine !Our experience is your advantage!
●Direct manufacturer(own factory)!
●Pouch making machine get Japan and European engineer’s praise!
●480 set machine installed!
●2 years warranty time!
●Origin Idea ,design by our own engineer ,accept OEM or ODM!
●High skilled engineer ,easy operation!
●Turn-key project, remote support on line!
●Photos and videos can be taken while testing the machine, so that you can check the specifications and quality on line!
●Qualified machine under global safety standards to guarantee production safety and workers security.
Plastic woven bag offset printing machine is mainly used to print characters, patterns and trademarks on woven bags, non-woven fabrics, paper and kraft paper bags. Clear, accurate color registration, saving ink (ink), simple operation, stable operation, high efficiency, energy saving, suitable for a variety of different specifications.
Note: This printing machine is suitable for ink and ink.
It is mainly composed of three parts: feeding table, printing machine and receiving material. The receiving part can be equipped with bag collecting machine equipment (after adding, one labor can be saved).
Fully Automatic PP Woven Bag Cutting & Sewing Machine is a high speed conversion line from plain woven (non-coated or coated) and printed woven fabric for cross cutting, bottom folding, sewing and finally stacking of finished PP woven fabric bags in one continuous operation.
High Quality woven,rice bag Making Machine Suitable for cutting and sewing all kinds of market bags, fertilizer bags, rice bags, and express paper and plastic bags, it is a one-time processing equipment to complete the whole roll of woven bags to finished products. The machine integrates cutting and automatic edge folding (paper wrapping), automatic sewing, printing and automatic material collection into one machine from Haosen!
Fully Automatic PP Woven Bag Cutting & Sewing Machine is a high speed conversion line from plain woven (non-coated or coated) and printed woven fabric for cross cutting, bottom folding, sewing and finally stacking of finished PP woven fabric bags in one continuous operation.
PP Woven Block Bottom Valve Sack Conversion Line Adopts hot air welding ,no need additional adhesive to produce laminated PP valve bags.Special micropore technology can guarantee high speed powder feeding.

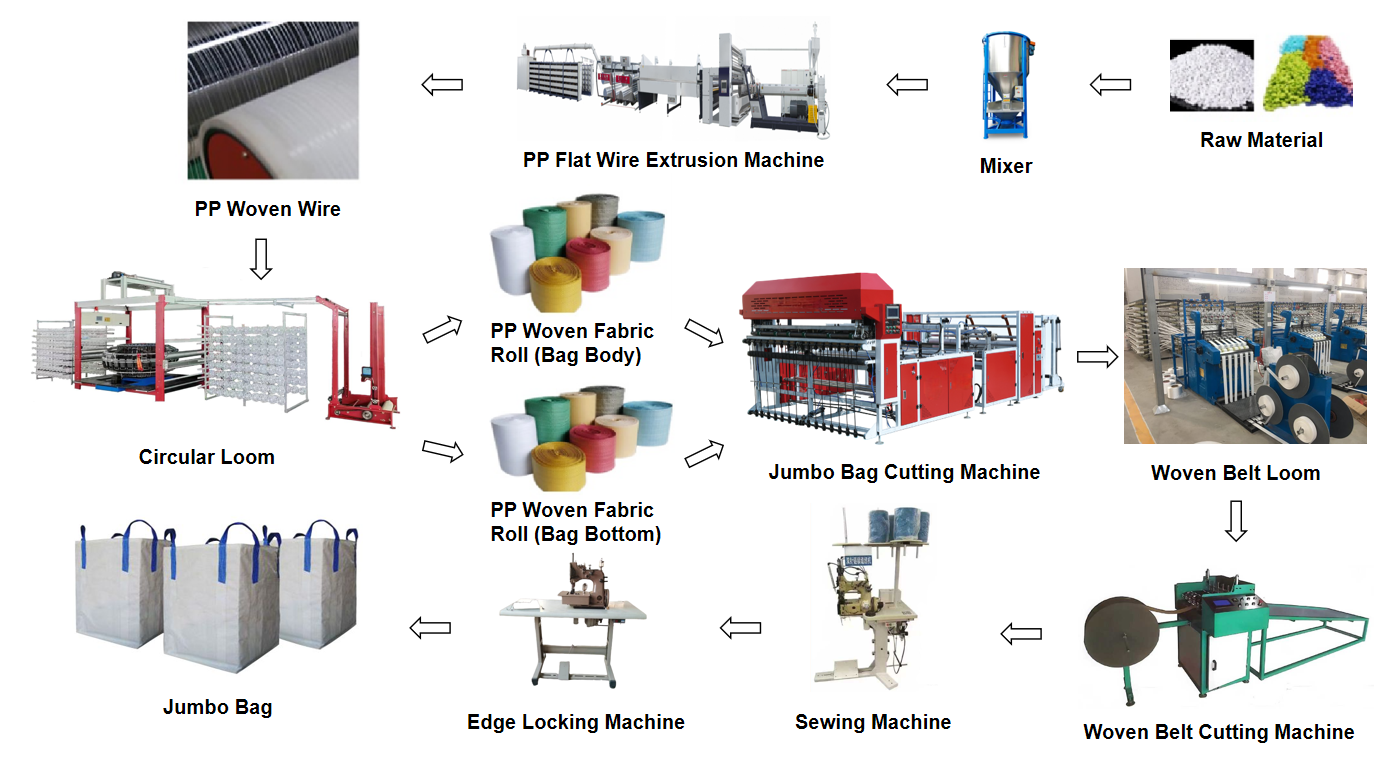

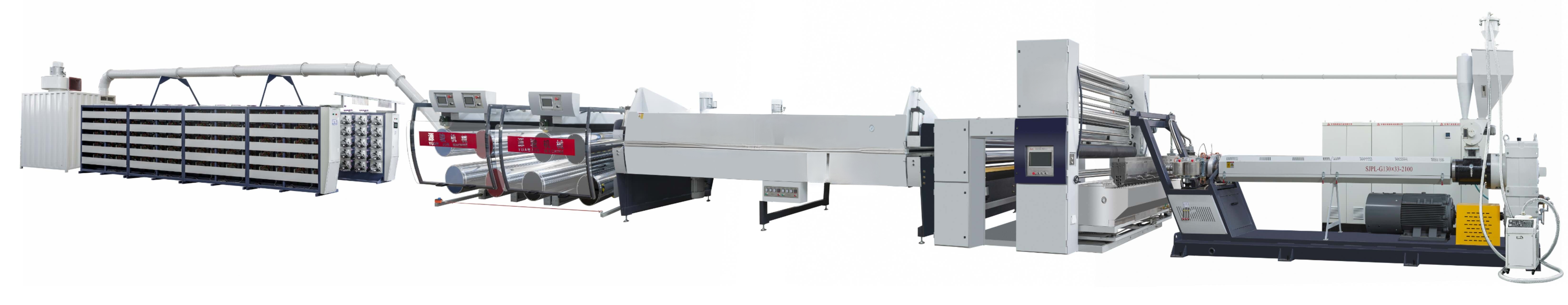

PP Woven Bag Making machine Production line include : PP Flat Wire Extrusion Machine, Circular Loom Machine, Film Extrusion Lamination machine, PP woven fabric printing machine, PP Woven Bag cutting sewing machine and auxiliary equipment air compressor, water chiller, water cooling tower etc.
