Automatic Medical Sterilization Reel&Pouch Making Machine
Automatic Medical Sterilization Reel&Pouch Making Machine
Automatic Medical Sterilization Pouch & Reel Making machine is specially for making medical pouch and reel, which is from two layer material --special medical paper and plastic composite film by hot sealing mold of the sterilization pouch machine, which is controlled by industrial computer with parameters showed by CRT,then collected at the rewinding device.
Bag (Pouch)Making Machine for Sterilization Medical Bag (Pouch)
Application
The HSYZS-600A medical sterilization pouch making machine is widely used to make sorts of bags for health care industry. Concentrating on intactness and clearness of medical bag (pouch )products, the machine is designed with high-accuracy parts to ensure operation run smoothly.
Features
●HSYZS-600A medical sterilization pouch and reel making machine is equipped with the latest discharging device with dual stations, automatic deviation correction for upper and lower with magnetic powder tension, pneumatic balance tension, imported photoelectric tracking device and servo motor to control fixed length.
●Controlled by industrial computer, the machine shows parameters by CRT and adjusts speed through imported frequency converter. It adopts synchronous control between discharging analog quantity control and host analog quantity control, also uses automatic punching device and utilizes skills of single or secondary heat sealing and impressed characterized by high accuracy and speed.

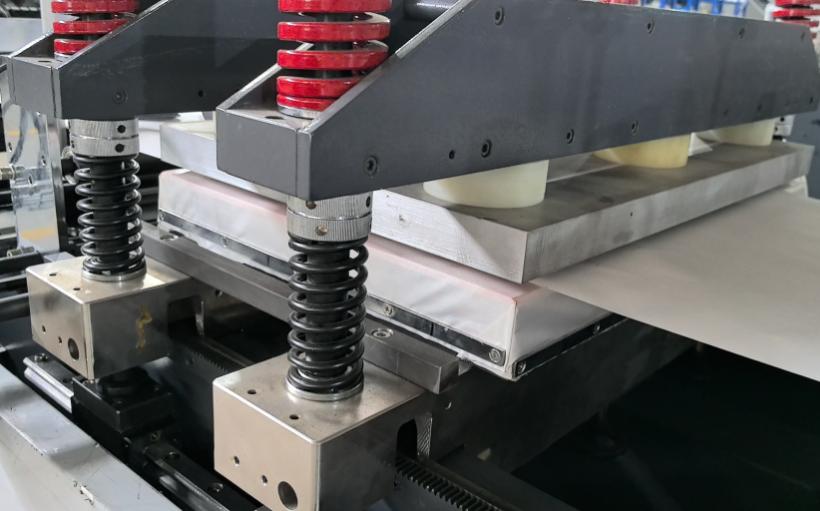

●Pressure will be controlled by heavy-duty spring device. The machine is the ideal facility to produce medical packing bag & paper, paper plastic and heat-sealing (stand-up) flat bag.
Main Parameter
Bag-making speed
Max speed: 30-130 pcs/min
Bag-making length
30-600mm
Bag-making width
Max width: 600m
Unwinding diameter
MaxΦ700mm (double discharge)
Bag-making precision
≤±1mm
Temperature control
0-400℃
Total power
25kw
Weight
3800kg
Dimension
6000*1250*1500mm
Technical Parameter Of Prototype
Bag-making speed
30-130 pcs/min (may range by material sorts and cutting length)
Range of film size
Max width: 620mm, max diameter:￠700mm
Bag size
Width: 75-600mm, length: 30-600mm
Machine dimension
Length*width*height: 6000*1200*2200mm
Weight
3800kg
Why Choose Us?
●17 years focus on pouch making machine!Our experience is your advantage!
●Direct manufacturer(own factory)!
●Pouch making machine get Japan Panasonic and European engineer’s praise!
●480 set machine installed!
●2 years warranty time!
●Origin Idea ,design by our own engineer,accept OEM or ODM!
●High skilled engineer, easy operation!
●Turn-key project, remote support on line!
●Photos and videos can be taken while testing the machine, so that you can check the specifications and quality on line!
●Qualified machine under global safety standards to guarantee production safety and workers security
Step Introduction
Includes the following parts:
1.Unwinder
2.Edge Rectifying system
3. Adhesive Tape Device
The tape will be added on the paper before sealing
4 Hot Sealing Part
5. Cold Sealing Part
6.ElectricPhoto Tracking
7.Slitting Parts
8 Bag Outputting
9.Rewinder for making medical reel
10.Computer Control Cabinet
11.Waste Edge Collection
12.One set mold for free
Common FAQ Questions
1.Medical Sterilization Pouch has which types?
2. Medical Sterilization Reel Pouch Production Process
3.Which machine should be used in producing medical sterilization pouch?
1)Printing Machine
2)Slitting Machine
3)Medical Pouch Making Machine
4)Auxiliary equipment : air compressor and water chiller
5)Other machine will be used during production
Manual Forklift , forklift with holder
4.Do you supply one -stop service?
Yes, we support one stop service: raw material supply, medical sterilization reel pouch producing workshop layout and supply, medical sterilization pouch production manufacturing and supply, site training , after sales technical support.
5.How many square meter workshop we should be ready ?
200 square meter + , for printing, slitting, bag making.
6.How much is the power consumption?
Approx 10kwh/hour.
7.Is there water consumption?
NO. The water in the water chiller can be recycled.
8.What is the production speed?
The mechnical designing speed is 30m/min. During the using, we calculate according to 15m/min.
For 150m(length) x 300m width, it is 12reel/hour, for 150m length x 150m width, it is 24 reel/hour.
9.If I want to produce different specifications, I should do which adjustment?
1)Change mold.
2)Adjust on the computer.
10.How many workers per shift?
1). printing machine --1 worker
2)Slitting machine ---1 worker
3)Medical paper Pouch making mahcine --1 worker
Workshop director for maintenance ------1
11.How can I get an effective quotation?
Confirm the following question ：
1）You want to make which type medical sterilization pouch?
A.Only Medical Sterilization reel (with and without gusset)
B.Only Medical Sterilization Pouch
C.Both
3)What max size pouch you want to make?
4)Do you have requirement for the production capacity per hour?
5)You need whole line? Or only medical reel pouch making machine?
12.How many years for your company?
We started from 2008.
13.Which certificate do you have?
CE, AAA credit.
