Header bag making machine for medical instruction packaging
Header bag making machine for medical instruction packaging
The header bag machine is utilized to make medical header bags in various shapes and styles. It is installed with PLC to cntrol fixed length and touch screen.
Bag(Pouch) Machine Machine for Side seal header medical bag (Pouch)
Application:

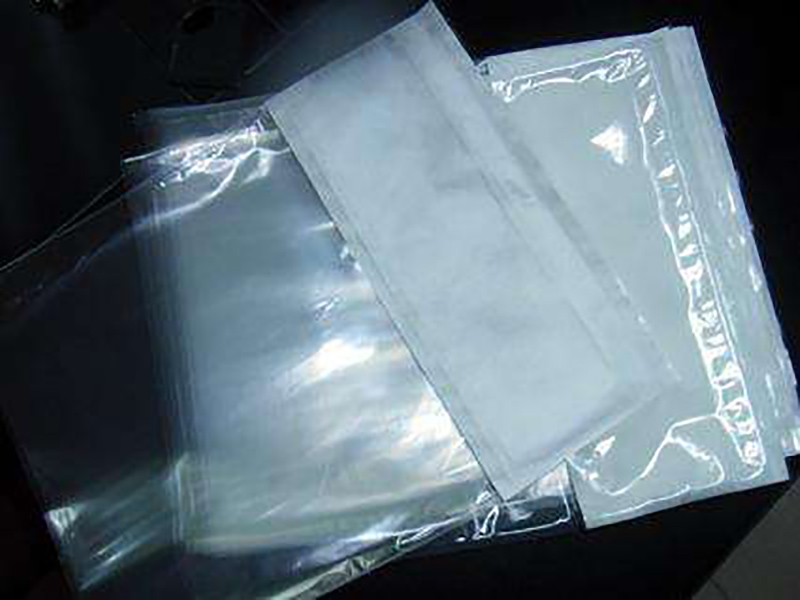

The HSYDTD-600C Medical header bag machine for medical instruction packaging is widely used to produce medical header bags such as PE header bag and Tyvek peel film with better tightness and intactness. There are series of features to meet clients’ requirements.
Features:
●HSYDTD-600C medical bag machine is equipped with three or four latest discharging devices, automatic deviation correction with magnetic powder tension, photoelectric tracking device, PLC to control fixed length and touch screen.
●Chiefly characterized by proper structure, simple operation, convenient repair method and high control precision, the machine is the ideal facility to produce three-layer (four-layer) Tyvek/PE/PE of header bag and Tyvek/PE easy peel film for medical instruction packaging.
Main technical parameter:
Max width
100-650m
Total power
25kw
Original film width
700mm
Dimension
14*1.6*2.3m
Original film diameter
600mm
Weight
7000kg
Bag making speed
10-30 segments/min
Equipment processing range
Composite film, pe, tyvek paper.
Feeding speed
16 m/min. (it will vary depending on the bag length).
Max length
50-300mm,if > 300mm，by multi-feeding，max feeding times as 6.
Bag making form
Three-side sealing, blank bag, photoelectric positioning color bag.
Medical Header Bag Making Machine Working Video
How Do You Do Technical Support?
Haosen is Committed to do excellent technical support!
1. We supplies comprehensive product manuals that include all the information required :
1) Machine assembling
2) Power Connection
3) Main Operate
4) Troubleshoot
5) Circuit Diagram
6) Spare Parts List
The manuals are available in conventional print form as well as digital format.
2. Factory-based training or customer’s site training can be organized, giving your opertors about safe operation, maintenance, changeover procedures etc.
3.On line guiding can be organized at any time if there is any trouble during the using.
Why choose us?
●17 years focus on pouch making machine! Our experience is your advantage!
●Direct manufacturer(own factory)!
●Pouch making machine get Japan Panasonic and European engineer’s praise!
●480 set machine installed!
●2 years warranty time!
●Origin Idea ,design by our own engineer ,accept OEM or ODM!
●High skilled engineer ,easy operation!
●Turn-key project, remote support on line!
●Photos and videos can be taken while testing the machine, so that you can check the specifications and quality on line!
●Qualified machine under global safety standards to guarantee production safety and workers security.
The medical high speed paper folding machine is utilized to fastly fold paper for medicine. Series of paper folding machine are specially equipped with lots of advanced devices to make high precision a reality.
Automatic Medical Sterilization Pouch & Reel Making machine is specially for making medical pouch and reel, which is from two layer material --special medical paper and plastic composite film by hot sealing mold of the sterilization pouch machine, which is controlled by industrial computer with parameters showed by CRT,then collected at the rewinding device.
Tyvek medical pouch making machine is used for making medical head bag (pouch),high temperature steam sterilization bag .Suitable material : HDPE + Tyvek, Coextrusion film +Tyvek, Laminated film +Tyvek.
This bag making machine is mainly used for the production of composite film with heat-sealable material as the inner layer Automatic middle sealing bag making machine.
This is Sharp Bottom Paper bag making machine the machine operation more convenient, more efficient, more stable is in the production of a variety of different paper bags, fenestration bread bags, leisure food bag, bag of bread, dried fruit bags and so on environmental paper bag paper bag machine equipment.
Irregular shape bag making machines are widely used in industries that require customized packaging solutions, such as food packaging, cosmetics, pharmaceuticals, and consumer goods. They are ideal for creating bags with unique designs that enhance product appeal and functionality. With advanced control systems and tension management, the machine ensures high precision and fast production speeds. The machines are designed with safety features to protect operators and have a long lifespan with proper maintenance
