This film extrusion lamination machine is used for combining the plastic film with the surface of paper, board or other materials through adhesive to form a paper-plastic product. It has a wide range of applications. It can make protective and beautification effect for the PP woven bags.

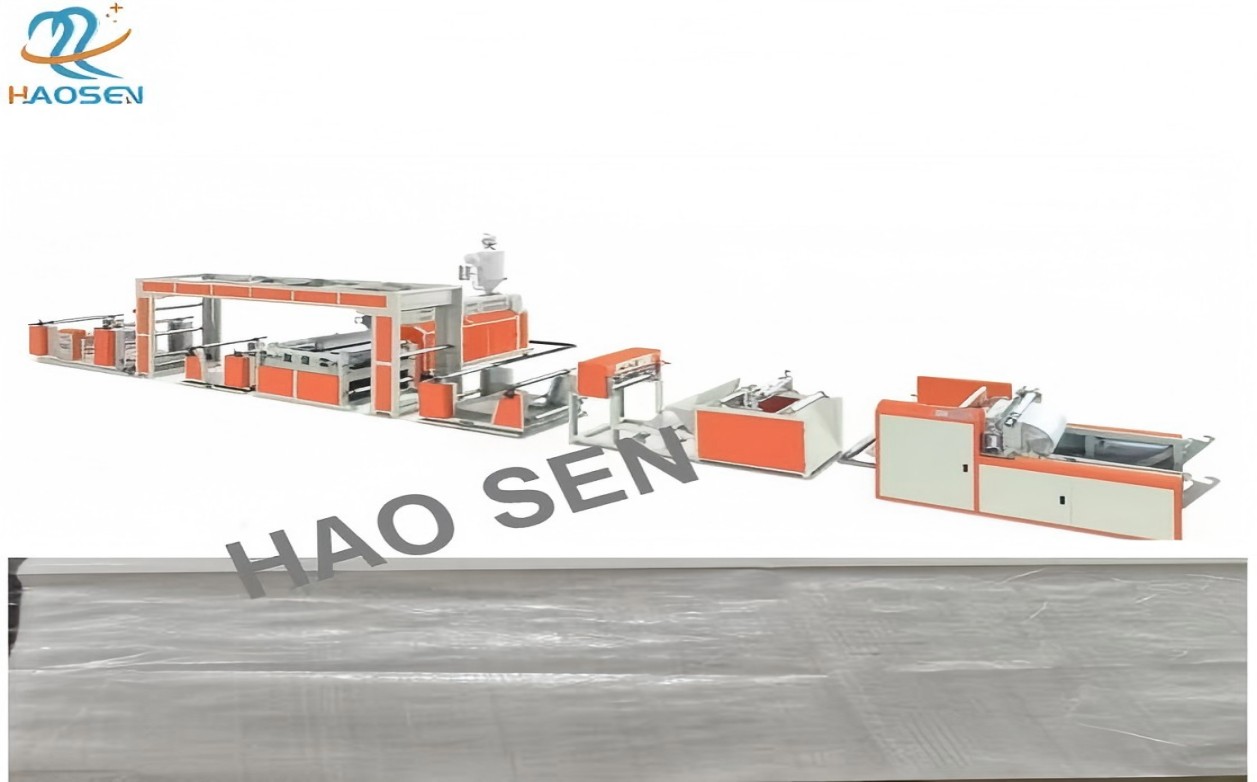

Film Lamination Machine
Sample bag(bright light type)
Main technical parameters:
1、The number of the die head:2
2、The width of the die head:1200MM
3、The composite width:250-850MM
4、L/D:30:1
5、The power of the main motor:18.5KW
6、The speed of the composite wire:30-200m/min
7、The floor space of the equipment:15L*8W*3.5H M
Composition of equipment
1. Main motor(extrusion ) One Unit
Name |
Specs |
Notes |
Screw size : |
Φ106mm*3200MM |
|
Screw material: |
38CrMoALA |
Nitriding treatment |
Screw L/D: |
30∶1 |
|
Die number: |
2 |
Huangyan Taizhou China |
Die width: |
1200MM |
The mold is steel material , plated with surface and polished |
Composite width: |
250-850MM |
Use the handwheel to adjust the copper plate stopper to adjust its width |
Mold heating method |
Internal heating,heating rod |
|
Host frequency drive |
18.5KW |
Kewo Shenzhen |
Main engine |
4-18.5KW |
Lishi Shanghai |
Heating method |
Ceramic heating220V |
|
Host advance and retreat mode |
electric |
|
Advance and retreat motor |
0.75KW |
|
Automatic feeding machine |
360G |
|
Stainless steel automatic mixing machine |
200KG,electrical machinery 3KW |
50r/m,stainless steel width1.5MM |
Automatic dryer(drying) |
75KG |
|
2.Bag rack One Unit
Name |
Specs |
Notes |
Magnetic powder brake |
10KG*2 |
|
Tension controller |
800A*2 |
|
Air shaft |
Ф72*1050*2 Ф86*1050*2 |
|
Automatic correction machine |
Ultrasonic electronic correction |
High accuracy,Jing kong Wuxi |
Maxing unwinding diameter |
1300MM |
|
Bag receiving method |
Cylinder clamp |
|
3.Tractor One Unit
Name |
Specs |
Notes |
Composite stick size |
NBR rubber rollerФ275*1100*2 Cooling rollerФ275*1100*2 Mirror rollerФФ500*1100*2
|
|
Traction motor |
7.5+7.5KW |
Lishi Shanghai |
Traction frequency converter |
7.5+7.5KW |
Kewo Shenzhen |
Composite linear velocity |
30-200m/min |
|
Traction frame |
Several guide roller,two separation roller |
|
4.The central frame: One Unit
Name |
Specs |
Notes |
Cut edge device |
The pneumatic round knife |
Hand shake to adjust the left and right |
blowing machine |
2.2KW |
|
5.The winding machine: One Unit
Name |
Specs |
Notes |
Roll up method |
Air pressure backrest winding |
|
Roll change method |
Artificial cut |
|
Volume down method |
Air cylinder |
|
Air shaft |
Ф74*1100*2 |
|
Winder motor |
7.5KW |
Lishi Shanghai |
Wind frequency converter |
7.5KW |
Kewo Shezhen |
Swing arm device |
Locator, cylinder |
|
Maximum volume diameter |
1300MM |
|
6. Electric distribution box: One Unit
Name |
Specs |
Notes |
Touch screen |
10 Inch |
Can display gram weight, speed, meter |
The PLC system + the module |
|
Omron |
Intelligent temperature control table |
0-400°,Type K |
Yatai Shanghai |
contactor |
3210 |
Zhengtai Shanghai |
air switch |
|
Zhengtai Shanghai |
frequency transformer |
|
Kewo Shezhen |
7.Random accessories
Name |
Specs |
Notes |
Filter screen |
Of the 60 orders * 245 |
Several pieces |
Round knife |
45*90 |
2 |
tool |
|
1 |
revolving joint |
|
8 |
air gun |
|
4 |
air cock |
|
3 |
screw |
|
1 |
Conductor heating ring |
|
1 |
Upper three-way heating circle |
|
1 |
The lower three-way heating board |
|
1 |
Module head heating rod |
|
2 |
Hall switch |
|
1 |
Module scratch knife |
|
1 |
