Spout Pouch Making Machine Introduction

Spout Pouch making machine includes stand up pouch making machine, spout pouch making machine and other auxiliary equipment. This presentation mainly introduces the spout pouch making machine.

Our company has three different kinds of machine, which are HSHZD-1800B

HSHZD-1800C

and HSHZD-1800D.

The production process of Model B machine

The bag body without the spout is placed in the bag storage mechanism, and the suction cup will suck the bag body and send it to the initial sealing mechanism. The spout taking mechanism will remove the spout from the spout feeding mechanism, and insert the spout into the bag body after rotating 180°. The initial sealing mechanism will seal the spout. After the initial sealing is completed, the bag is moved to the hot sealing mechanism 1, hot sealing mechanism 2 and cold sealing mechanism in turn through the suction cup for two hot sealing and one cold sealing. Finally, the finished bag will be output.

The production process of Model C machine:

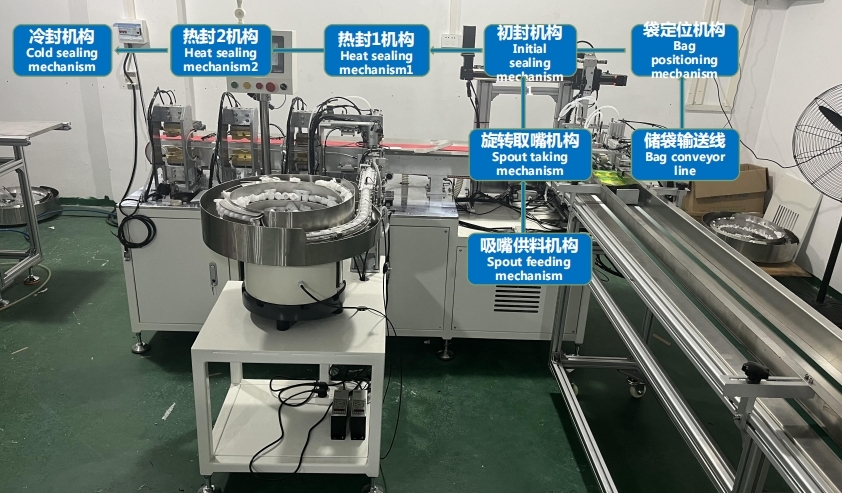

The bag body without the spout is placed on the bag conveyor line, transmitted to the bag positioning mechanism through the conveyor belt, the suction cup will suck the bag body, and transmitted to the initial sealing mechanism. The spout taking mechanism will remove the spout from the spout feeding mechanism, and insert the spout into the bag body after rotating 180°. The initial sealing mechanism will seal the spout. After the initial sealing is completed, the bag is sent to the hot sealing mechanism 1, hot sealing mechanism 2 and cold sealing mechanism in turn through the conveyor belt for two hot sealing and one cold sealing. Finally, the finished bag will be output.

The production process of Model D machine is the same as that of Model C machine.

The difference between Model B machine and Model C machine:

The model B machine can make a smaller range of bag sizes than the model C machine, but the production speed of the model B machine is greater than that of the model C machine. The main difference between model B machine and model C machine is that model B machine can install bag collection device, but model C machine can not be installed. Not all bags can be collected using a bag collecting device. Only bags with a card slot in the spout can be used.

(Single card slot on the left and double card slot on the right, both of which can be bagged with a bag collecting device)

There is no way to collect a bag without a mouthpiece card slot using a bag collecting device. For example:

The difference between a Model C and a Model D:

Model C machine and model D machine only have a difference in bag making speed and motor, the bag making speed of model C machine is 1800-2000pcs/min, and the speed of model D machine is 2100-2200pcs/min. The model D machine has one more servo manipulator than the model C machine, which can increase the speed of bag making.

Our machines support 1 year shelf life, after sale there will be professional engineers to guide the installation and testing. If there is any problem in the use process, we will help to solve it.
